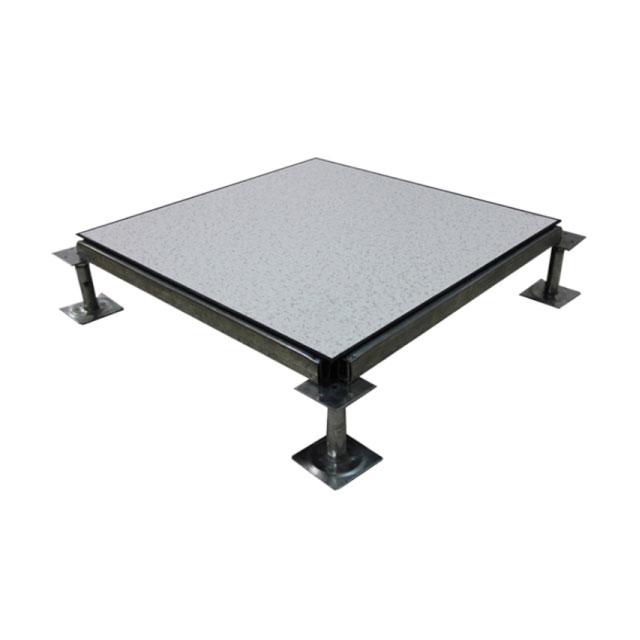

Conductive Steel Concrete Raised Floor with PVC Finish

The steel panel is laminated with vinyl tile. Vinyl uses a process toensure the static elements are distributed evenly through theentire tile thickness. This ensures a lifetime of consistentresistance performance regardless of wear. The panel isrecommended in electronic manufacturing facilities,computer/server room installations, clean rooms,telecommunication rooms and health care laboratories.

Size	60060035mm
Materials	Steel, cement
Installation	stringer system
Finish	PVC

Inquiry Now

Steel Cement Raised Access Floor

Also called Steel Cement Raised Floor, it is made of a steel shell which is filled with cement. Steel Cements Raised Floor is a good choice for builders who need cable management, anti-static, and high load capacity.

System Performance Criteria
Raised Floor		Static Loads			Rolling Loads
Type	Size	Concentrated Load	Safety Factor (min.2.0)	Ultimated load	10 Passes	10,000 Passes
FS800	600x600x35mm 610x610x35mm	368kg/800lbs	Pass	736kg/1600lbs	318kg 700lbs	275kg 600lbs
FS1000	600x600x35mm 610x610x35mm	454kg/1000lbs	Pass	909kg/2000lbs	368kg 800lbs	318kg 700lbs
FS1250	600x600x35mm 610x610x35mm	568kg/1250lbs	Pass	1136kg/2500lbs	454kg 1000lbs	368kg 800lbs
FS1500	600x600x35mm 610x610x35mm	681kg/1250lbs	Pass	1363kg/3000lbs	568kg 1250lbs	454g 1000lbs
FS2000	600x600x35mm 610x610x35mm	909kg/1250lbs	Pass	1818kg/4000lbs	681kg 1500lbs	568kg 1250lbs
FS2500	600x600x35mm 610x610x35mm	1136kg/1250lbs	Pass	2272kg/5000lbs	909kg 2000lbs	681kg 1500lbs
FS3000	600x600x35mm 610x610x35mm	1363kg/1250lbs	Pass	2726kg/6000lbs	1136kg 2500lbs	909kg 2000lbs
